Description:
The name of the waterproof box is different due to regional differences and
different scopes. The industrial junction boxes are waterproof junction boxes,
waterproof meter boxes, and waterproof photovoltaic junction boxes. They are
suitable for indoor and outdoor electrical, communications, fire protection
facilities, and steel Smelting, petrochemical, electronics, power, railway,
construction sites, mines, mining sites, airports, hotels, large factories,
ships, dock equipment, sewage treatment facilities, environmental pollution
facilities, etc.
Service Hotline:0755-82579946 / 82579948
Specification:

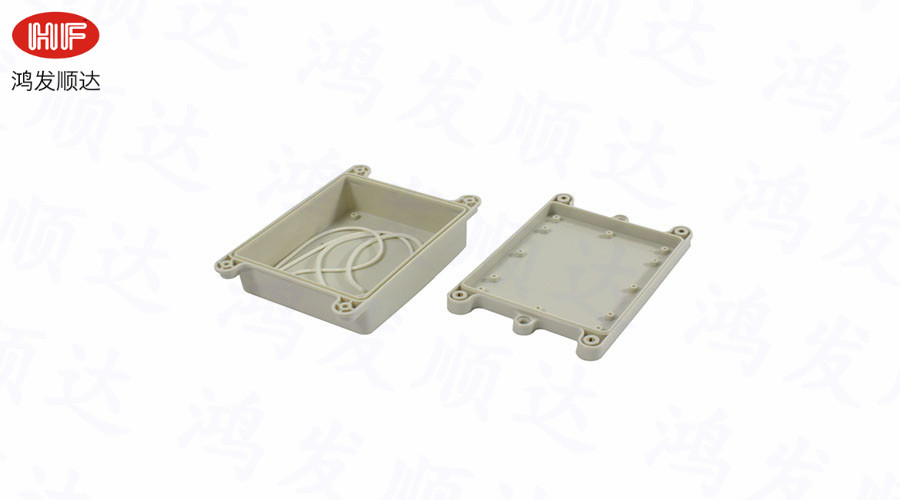

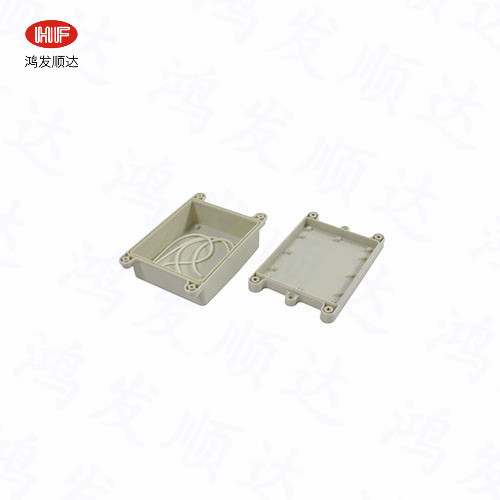

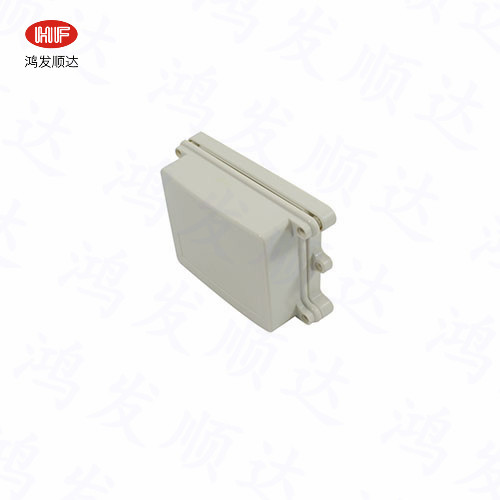

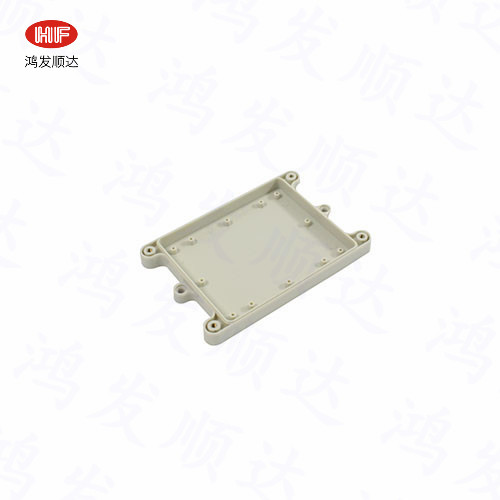

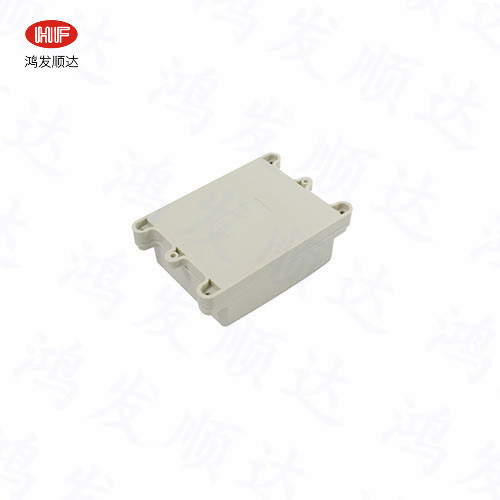

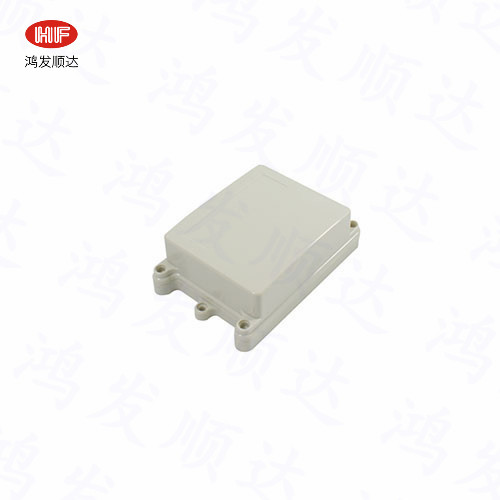

【Model】:HF-H-160
【Material】: ABS/PC,Fiberglass etc
【Size】: 145*120*60mm
【Processing】: Drilling holes as requested
【Color】: Customized as requested
【Surface Treatment】: Painting,powder coating etc.
HF-H-1 100*68*50?mm
HF-H-2 100*68*50??mm
HF-H-3 138*68*50mm
HF-H-5 138*68*50mm
HF-H-6 115*90*55??mm
HF-H-7 115*90*55? mm
HF-H-8 129*115*68mm
HF-H-9 129*115*68?mm
HF-H-10 115*90*55?｛mm｝
HF-H-11 115*90*56?mm
HF-H-12 200*120*72??mm
HF-H-13 200*120*72?mm
HF-H-14 240*120*75? mm
HF-H-15 240*120*75?? mm
HF-H-16 200*120*55? mm
HF-H-17 200*120*55? mm
HF-H-18 200*120*108? mm
HF-H-19 158*90*60?mm
HF-H-20 158*90*60? mm
HF-H-21 195*90*60?mm
HF-H-22 195*90*60?mm
HF-H-23 195*90*60?mm
HF-H-24 158*90*40?mm
HF-H-25 160*160*90?mm
HF-H-26 160*160*90??mm
HF-H-27 160*160*120?? mm
HF-H-28 160*160*120?mm
HF-H-29 200*163*90?mm
HF-H-30 120*120*90? mm
HF-H-31 120*120*90?mm
HF-H-32 263*185*95?mm
HF-H-33 263*185*95?mm
HF-H-34 230*150*85?mm
HF-H-36 270*150*85?mm
HF-H-37 222*145*75?mm
HF-H-38 222*145*75?mm
HF-H-39 222*145*55mm
HF-H-40 222*145*55? mm
HF-H-41 320*240*110mm
HF-H-42 158*90*46mm
HF-H-43 162*81*65mm
HF-H-44 197*92*46mm
HF-H-45 197*92*46mm
HF-H-46 380*260*105? mm
HF-H-47 240*120*66mm
HF-H-48 128*63*37mm
HF-H-49 360*260*155mm
HF-H-50 210*160*70mm
HF-H-51 160*110*90mm
HF-H-52 160*110*90mm
HF-H-53 210*160*70mm
HF-H-54 210*160*70mm
HF-H-55 210*160*70mm
HF-H-56 64*58*35mm
HF-H-57 64*58*36mm
HF-H-58 90*58*35mm
HF-H-62 84*59*33mm
HF-H-63 84*59*33mm
HF-H-64 84*59*33mm
HF-H-65 84*59*33mm
HF-H-66 100*68*40mm
HF-H-67 79*79*60mm
HF-H-69 194*80*60mm
HF-H-70 120*79*60?? mm
HF-H-71 158*80*80mm
HF-H-72 196*80*55mm
HF-H-73 160*45*85mm
HF-H-74 160*56*44mm
HF-H-75 180*125*56mm
HF-H-76 180*125*56mm
HF-H-78 230*150*60mm
HF-H-79 263*185*60mm
HF-H-80 263*185*80mm
HF-H-81 290*210*60mm
HF-H-82 290*210*80mm
HF-H-83 290*210*100mm
HF-H-84 300*200*125mm
HF-H-85 154*115*75mm
HF-H-86 150*100*72mm
HF-H-87 170*120*72?mm
HF-H-88 190*140*72mm
HF-H-89 220*160*72mm
HF-H-90 115*90*72mm
HF-H-91 300*200*167mm
HF-H-92 200*100*72mm
HF-H-93 120*100*75mm
HF-H-94 238*178*125mm
HF-H-95 327*245*120mm
HF-H-96 225*190*70mm
HF-H-97 240*170*110mm
HF-H-98 290*190*140mm
HF-H-100 290*190*140mm
HF-H-101 340*240*155mm
HF-H-102 390*290*165mm
HF-H-103 390*290*165mm
HF-H-104 480*370*200mm
HF-H-105 265*188*145mm
HF-H-106 265*188*145mm
HF-H-107 220*148*108mm
HF-H-108 220*148*108mm
HF-H-109 200*100*70mm
HF-H-111 150*100*70mm
HF-H-112 150*100*70mm
HF-H-113 375*258*155mm
HF-H-114 375*258*155mm
HF-H-117 330*330*180mm
HF-H-118 330*330*180mm
HF-H-119 375*258*104mm
HF-H-120 300*200*180mm
HF-H-121 158*90*75mm
HF-H-122 263*185*75mm
HF-H-125 283*143*89mm
HF-H-126 380*260*120mm
HF-H-127 355*185*133mm
HF-H-128 355*185*97mm
HF-H-129 355*185*113mm
HF-H-130 355*185*77mm
HF-H-131 325*170*103mm
HF-H-132 325*170*60mm
HF-H-133 325*170*123mm
HF-H-134 325*170*78mm
HF-H-135 295*155*96mm
HF-H-136 295*155*55mm
HF-H-137 295*155*112mm
HF-H-138 295*155*72mm
HF-H-139 265*140*105mm
HF-H-140 265*140*70mm
HF-H-141 265*140*90mm
HF-H-142 265*140*55mm
HF-H-143 230*120*95mm
HF-H-144 230*120*60mm
HF-H-145 230*120*80mm
HF-H-146 230*120*45mm
HF-H-147 192*100*62mm
HF-H-148 192*100*45mm
HF-H-149 240*160*90mm
HF-H-150 240*120*63mm
HF-H-151 290*200*130mm
HF-H-152 250*170*120mm
HF-H-153 210*120*110mm
HF-H-154 160*100*56mm
HF-H-155 133*80*90mm
HF-H-156 300*270*110mm
HF-H-157 255*230*100mm
HF-H-158 215*185*85mm
HF-H-159 180*150*70mm
HF-H-160 145*120*60mm
HF-H-161 125*100*50mm
HF-H-162 90*85*40mm
HF-H-163 90*85*40mm
HF-H-164 235*165*45mm
HF-H-165 200*140*41mm
HF-H-166 170*120*21mm
HF-H-167 145*102*31mm
HF-H-168 200*120*90mm
HF-H-169 200*120*72mm
HF-H-170 200*120*53mm
HF-H-171 200*120*90mm
HF-H-172 200*120*72mm
HF-H-173 200*120*53mm
HF-H-174 230*150*110mm
HF-H-175 230*150*85mm
HF-H-176 230*150*61mm
HF-H-177 230*150*110mm
HF-H-178 230*150*85mm
HF-H-179 230*150*61mm
HF-H-180 160*90*80mm
HF-H-181 160*90*60mm
HF-H-182 160*90*40mm
HF-H-183 160*90*80mm
HF-H-184 160*90*60mm
HF-H-185 160*90*40mm
HF-H-186 340*270*100mm
HF-H-187 340*270*60mm
HF-H-188 340*270*120mm
HF-H-189 340*270*80mm
HF-H-190 300*230*92mm
HF-H-191 300*230*50mm
HF-H-192 300*230*110mm
HF-H-193 300*230*68mm
HF-H-194 270*200*92mm
HF-H-195 270*200*50mm
HF-H-196 270*200*110mm
HF-H-197 270*200*68mm
HF-H-198 240*175*90mm
HF-H-199 240*175*50mm
HF-H-200 240*175*107mm
HF-H-201 240*175*68mm
HF-H-202 210*155*105mm
HF-H-203 210*155*63mm
HF-H-204 210*155*87mm
HF-H-205 210*155*45mm
HF-H-206 180*130*82mm
HF-H-207 180*130*45mm
HF-H-208 180*130*100mm
HF-H-209 180*130*63mm
HF-H-210 140*105*82mm
HF-H-211 140*105*45mm
HF-H-212 140*105*100mm
HF-H-213 140*105*63mm
HF-H-214 280*190*130mm
HF-H-215 280*190*130mm
HF-H-216 380*280*130mm
HF-H-217 380*280*130mm
HF-H-218 380*280*180mm
HF-H-219 380*280*180mm
HF-H-220 380*190*130mm
HF-H-221 380*190*180mm
HF-H-222 280*280*130mm
HF-H-224 280*280*180mm
HF-H-225 280*280*180mm
HF-H-226 280*190*180mm
HF-H-227 280*190*180mm
HF-H-228 248*77*85mm
HF-H-229 248*77*70mm
HF-H-230 248*148*100mm
HF-H-231 248*148*115mm
HF-H-390 180*100*70mm
HF-H-393 76*70*40mm
